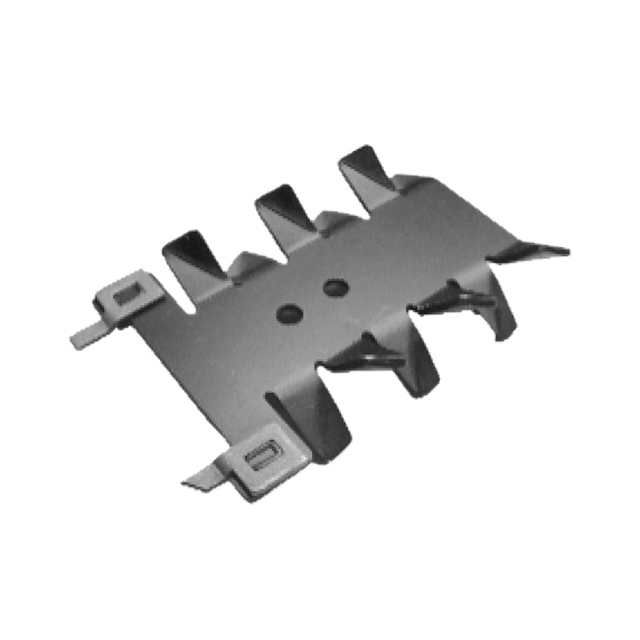

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ATS-PCB1030 |
| Manufacturer: | Advanced Thermal Solutions, Inc. |
| Part of Description: | HEATSINK TO-220 BLACK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3340 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Obsolete |
| Type | Board Level, Vertical |
| Package Cooled | TO-220 |
| Attachment Method | Bolt On and Board Mounts |
| Shape | Rectangular, Angled Fins |
| Length | 1.250" (31.75mm) |
| Width | 0.875" (22.22mm) |
| Diameter | - |
| Fin Height | 0.250" (6.35mm) |
| Power Dissipation @ Temperature Rise | - |
| Thermal Resistance @ Forced Air Flow | 9.90°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 22.00°C/W |
| Material | Aluminum |
| Material Finish | Black Anodized |
Stock Status: 3340
Minimum: 1
Call for price or submit a RFQ
