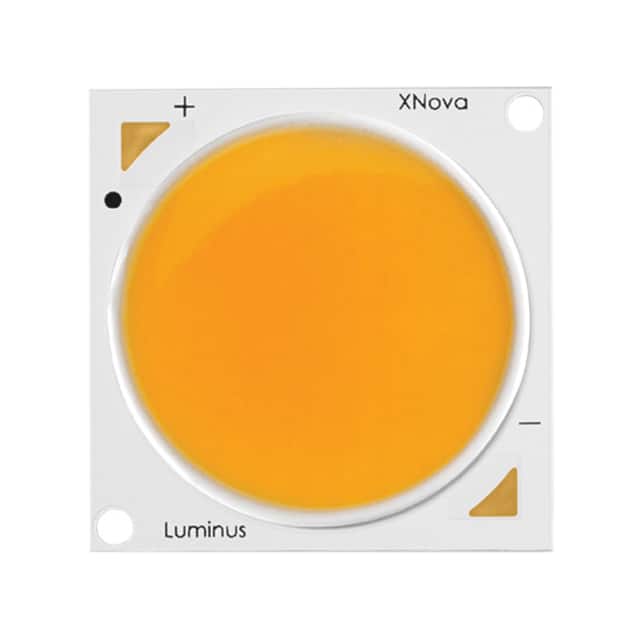

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CHM-22-27-90-36-AC00-F2-2 |
| Manufacturer: | Luminus Devices |
| Part of Description: | LED COB CHM22 WARM WHITE SQUARE |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 324 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CHM-22 |
| Package | Tray |
| Part Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 5520lm (Typ) |
| Current - Test | 1.92A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 82 lm/W |
| Current - Max | 3.8A |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 22.80mm L x 22.80mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Lens Type | Flat |
Stock Status: 324
Minimum: 1
Price: $17.45873
