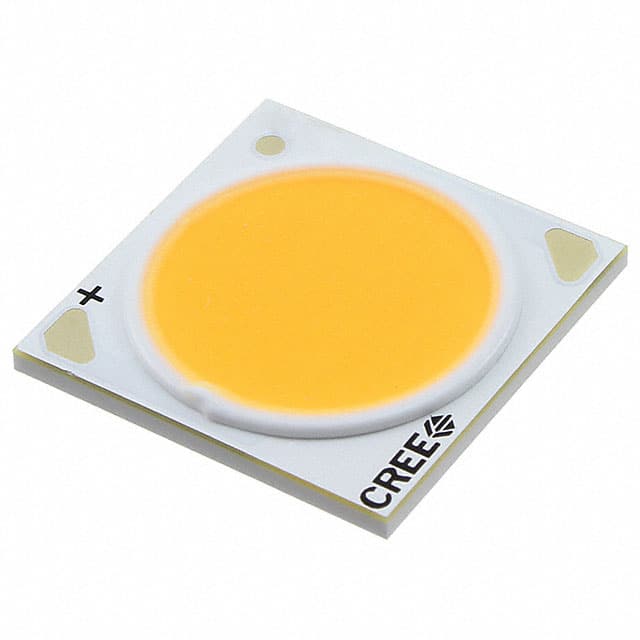

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CXA1830-0000-000N0UR440H |
| Manufacturer: | Cree |
| Part of Description: | LED COB CXA1830 NEUTRAL WHITE SQ |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1107 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | XLamp® CXA1830 |
| Package | Tray |
| Part Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2690lm (2600lm ~ 2780lm) |
| Current - Test | 800mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 37V |
| Lumens/Watt @ Current - Test | 91 lm/W |
| Current - Max | 1.4A |
| CRI (Color Rendering Index) | - |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 14.00mm Dia |
| Lens Type | Flat |
Stock Status: 1107
Minimum: 1
Price: $4.72600
