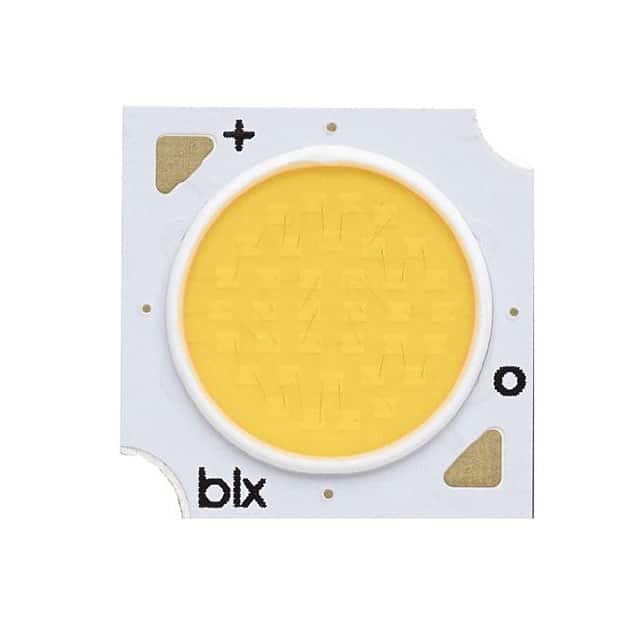

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | BXRE-30E1000-B-73 |
| Manufacturer: | Bridgelux, Inc. |
| Part of Description: | LED COB V10 3000K SQUARE |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2256 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | Gen 7 V10 Array |
| Package | Tray |
| Part Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1276lm (Typ) |
| Current - Test | 270mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34V |
| Lumens/Watt @ Current - Test | 139 lm/W |
| Current - Max | 540mA |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | - |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 10.20mm Dia |
| Lens Type | Flat |
Stock Status: 2256
Minimum: 1
Price: $2.25000
