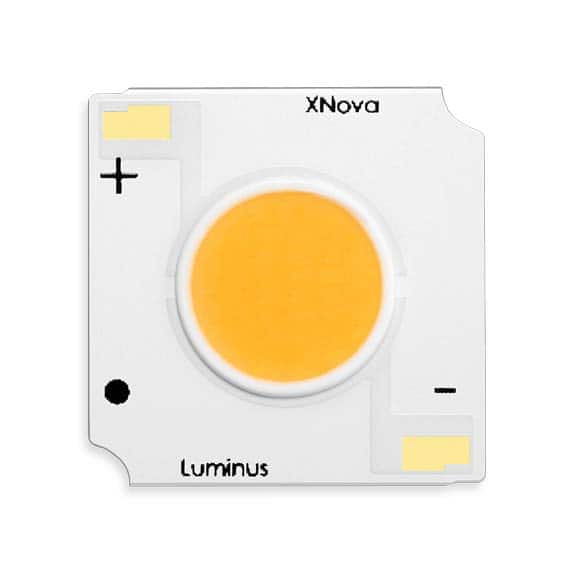

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CHM-9-27-90-36-AC00-F2-3 |
| Manufacturer: | Luminus Devices |
| Part of Description: | LED COB CHM9 WARM WHITE SQUARE |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2454 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CHM-9 |
| Package | Tray |
| Part Status | Not For New Designs |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1020lm (Typ) |
| Current - Test | 360mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35V |
| Lumens/Watt @ Current - Test | 81 lm/W |
| Current - Max | 720mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 13.50mm L x 13.50mm W |
| Height | 1.37mm |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Lens Type | Flat |
Stock Status: 2454
Minimum: 1
Price: $2.06741
