BXRC-25E4000-C-74-SE - Bridgelux, Inc.

Name: BXRC-25E4000-C-74-SE
Brand: Bridgelux, Inc.
SKU: BXRC-25E4000-C-74-SE
Price: 11.05500 USD
Availability: InStock
Rating: 4.8 (156 reviews)

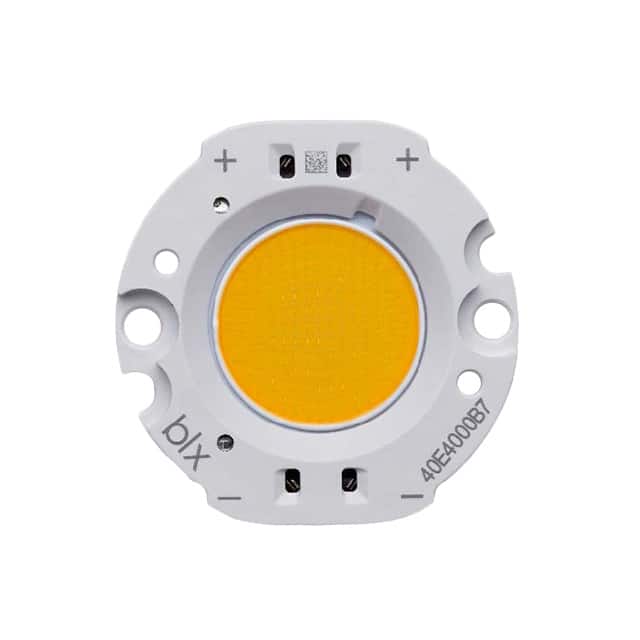

Bridgelux, Inc. BXRC-25E4000-C-74-SE - VERO SE 18C WARM WHITE LED ARRAY

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	BXRC-25E4000-C-74-SE
Manufacturer:	Bridgelux, Inc.
Part of Description:	VERO SE 18C WARM WHITE LED ARRAY
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	492 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the BXRC-25E4000-C-74-SE Bridgelux, Inc. on xunyun-ic.com, At Bridgelux, we help companies, industries and people experience the power and possibility of light. Since 2002, we’ve designed LED solutions that are high performing, energy efficient, cost effective and easy to integrate. Bridgelux focuses on light’s impact on human behavior, delivering produ...

Specification

Type	Description
Series	Vero® SE 18 Array
Package	Tray
Part Status	Active
Type	Chip On Board (COB)
Color	White, Warm
CCT (K)	2500K 4-Step MacAdam Ellipse
Wavelength	-
Configuration	Round
Luminous Flux @ Current/Temperature	5167lm (Typ)
Current - Test	1.17A
Temperature - Test	85°C
Voltage - Forward (Vf) (Typ)	33.9V
Lumens/Watt @ Current - Test	130 lm/W
Current - Max	2.34A
CRI (Color Rendering Index)	80
Viewing Angle	120°
Features	-
Size / Dimension	36.20mm Dia
Height	3.60mm
Light Emitting Surface (LES)	18.40mm Dia
Lens Type	Flat
