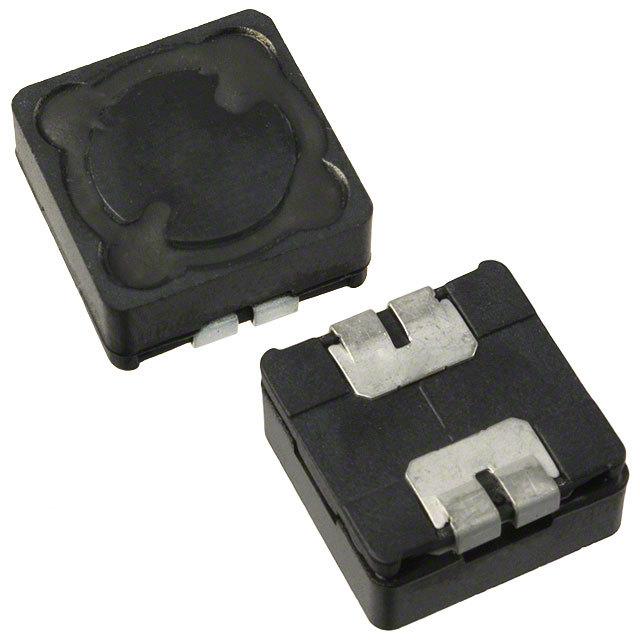

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SRR1206-680YL |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | FIXED IND 68UH 1.3A 170 MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4666 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SRR1206 |
| Package | Tape & Reel (TR)Cut Tape (CT) |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 68 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 2.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | 18 @ 2.52MHz |
| Frequency - Self Resonant | 7MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Stock Status: 4666
Minimum: 1
Price: $1.08000
