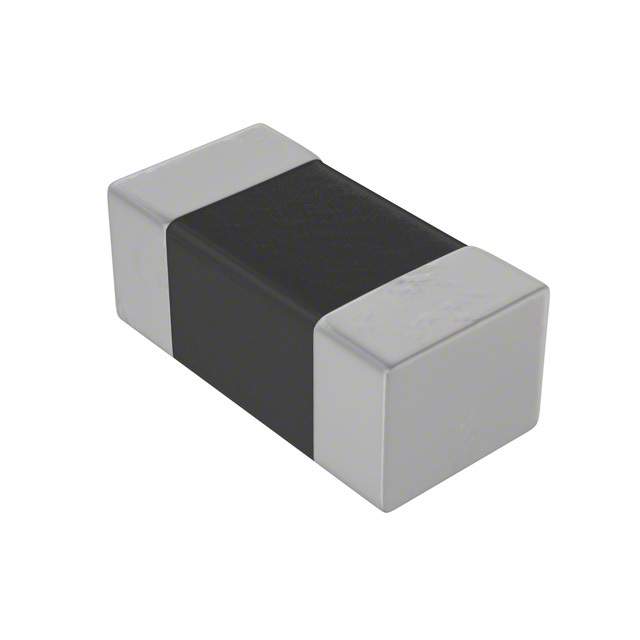

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CS321613-8R2K |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | FIXED IND 8.2UH 25MA 600MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1968 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CS321613 |
| Package | Tape & Reel (TR) |
| Part Status | Obsolete |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 8.2 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 25 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 65 @ 4MHz |
| Frequency - Self Resonant | 26MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 4 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Stock Status: 1968
Minimum: 1
Call for price or submit a RFQ
