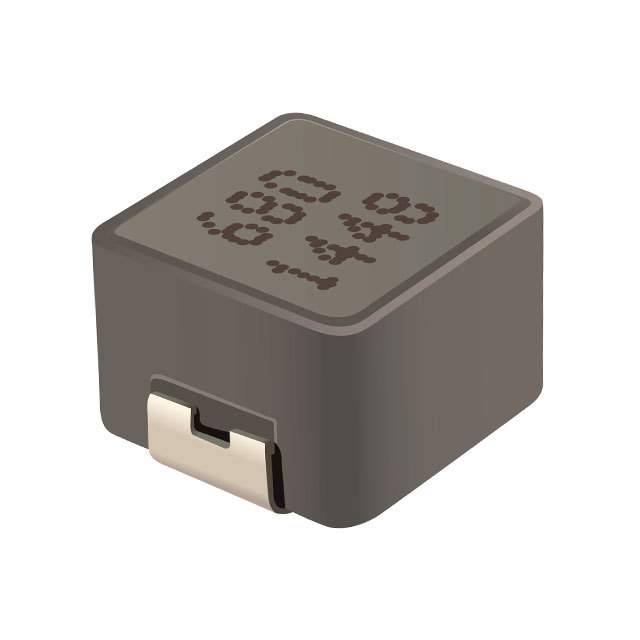

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SRP7050TA-470M |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | FIXED IND 47UH 1.9A 330 MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3368 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SRP7050TA |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Carbonyl Powder |
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 2.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 330mOhm Max |
| Q @ Freq | 15 @ 100kHz |
| Frequency - Self Resonant | 8MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.260" W (7.30mm x 6.60mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Stock Status: 3368
Minimum: 1
Price: $1.50000
