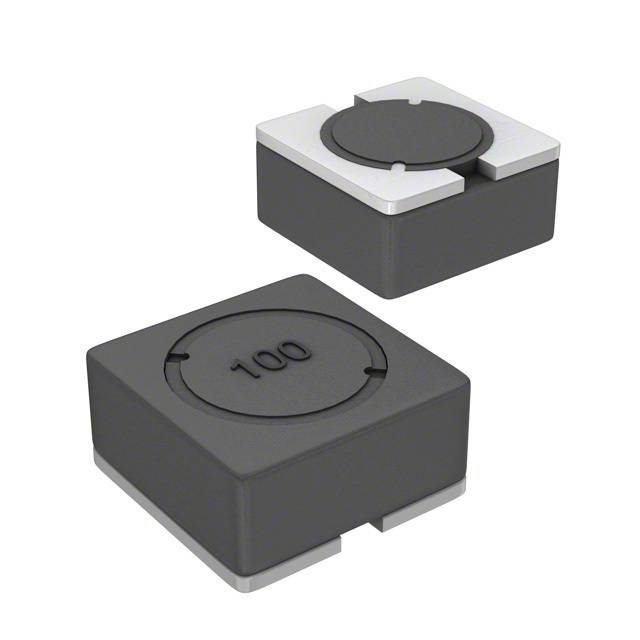

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SRR5028-820Y |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | FIXED IND 82UH 520MA 430MOHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 5999 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SRR5028 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 520 mA |
| Current - Saturation (Isat) | 500mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 430mOhm Max |
| Q @ Freq | 8 @ 2.52MHz |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Stock Status: 5999
Minimum: 1
Price: $0.84000
