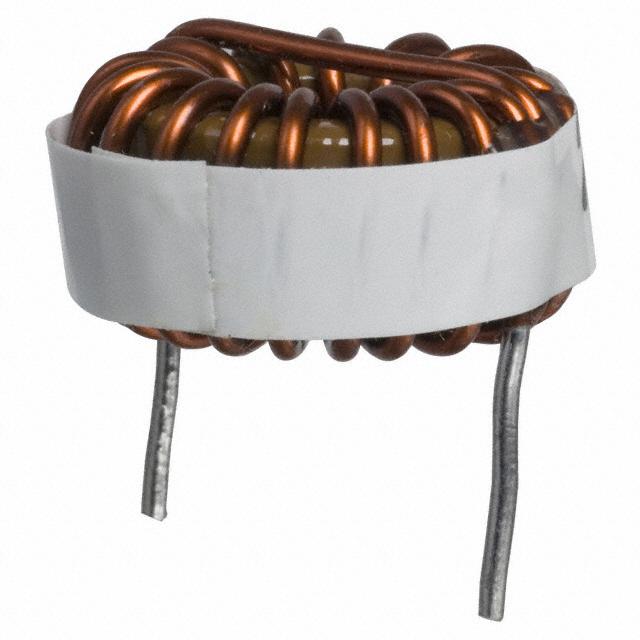

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 2306-H |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | FIXED IND 27UH 15.6A 8 MOHM TH |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3474 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | 2300 |
| Package | Bulk |
| Part Status | Obsolete |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 27 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 15.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 105°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.280" Dia (32.51mm) |
| Height - Seated (Max) | 0.650" (16.51mm) |
Stock Status: 3474
Minimum: 1
Call for price or submit a RFQ
