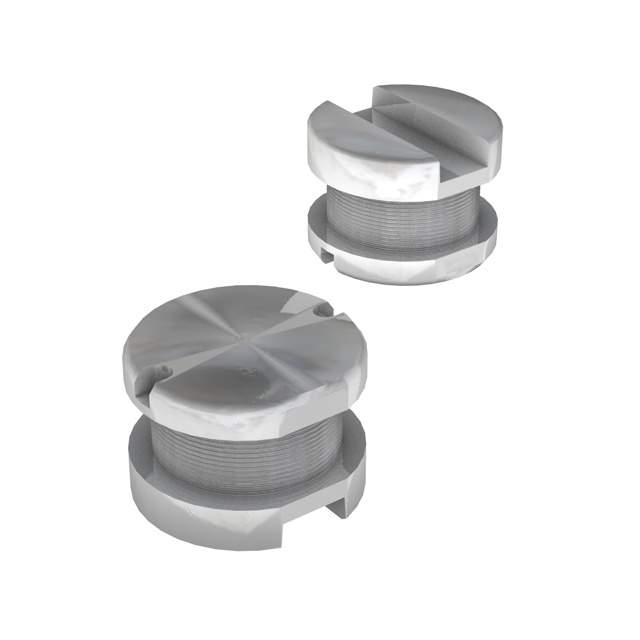

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SDR0403-471KL |
| Manufacturer: | J.W. Miller / Bourns |
| Part of Description: | FIXED IND 470UH 130MA 7 OHM SMD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 8816 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | SDR0403 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 130 mA |
| Current - Saturation (Isat) | 190mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7Ohm Max |
| Q @ Freq | 50 @ 796kHz |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Height - Seated (Max) | 0.138" (3.50mm) |
Stock Status: 8816
Minimum: 1
Price: $0.57000
