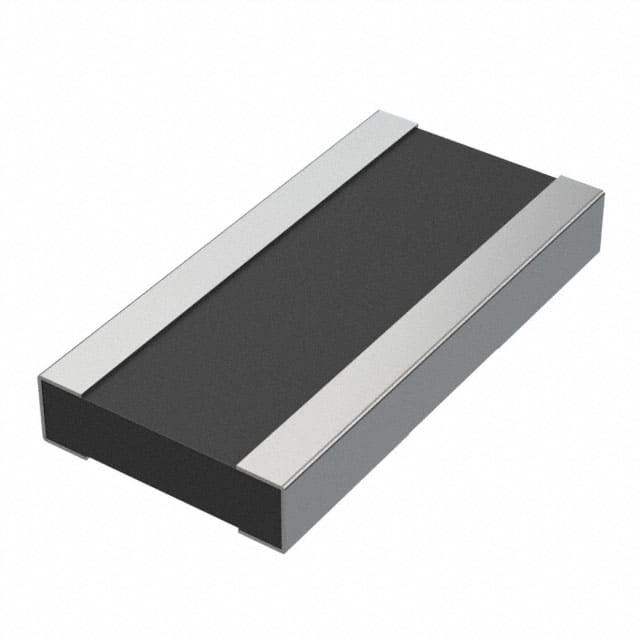

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | CSR1225JK22L0 |
| Manufacturer: | Stackpole Electronics, Inc. |
| Part of Description: | RES 0.022 OHM 5% 3W 2512 WIDE |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 24287 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CSR |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±150ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Wide 2512 (6432 Metric), 1225 |
| Supplier Device Package | 1225 |
| Ratings | - |
| Size / Dimension | 0.122" L x 0.248" W (3.10mm x 6.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 24287
Minimum: 1
Price: $0.20625
