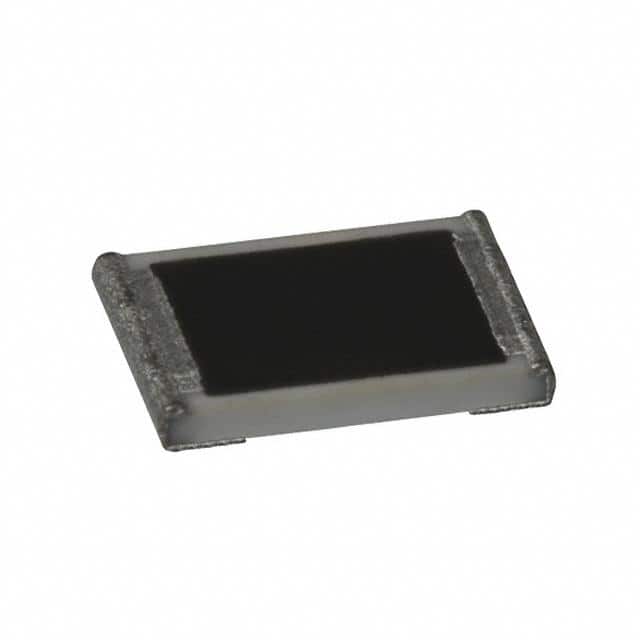

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ERA-3APB222V |
| Manufacturer: | Panasonic |
| Part of Description: | RES SMD 2.2K OHM 0.1% 1/10W 0603 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 7857 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | ERA-3A |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Resistance | 2.2 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thin Film |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 7857
Minimum: 1
Price: $0.64000
