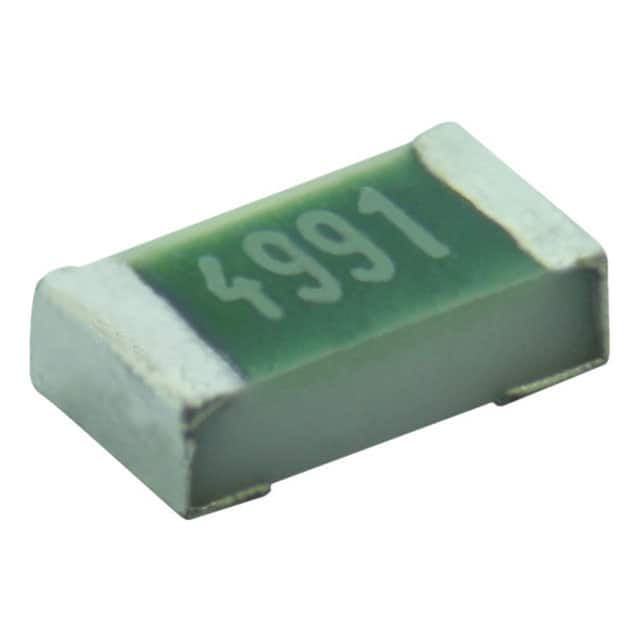

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | TNPW0603536RBYEA |
| Manufacturer: | Vishay / Dale |
| Part of Description: | RES 536 OHM 0.1% 1/8W 0603 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 20929 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TNPW e3 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Resistance | 536 Ohms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±10ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.061" L x 0.033" W (1.55mm x 0.85mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Stock Status: 20929
Minimum: 1
Price: $0.23940
