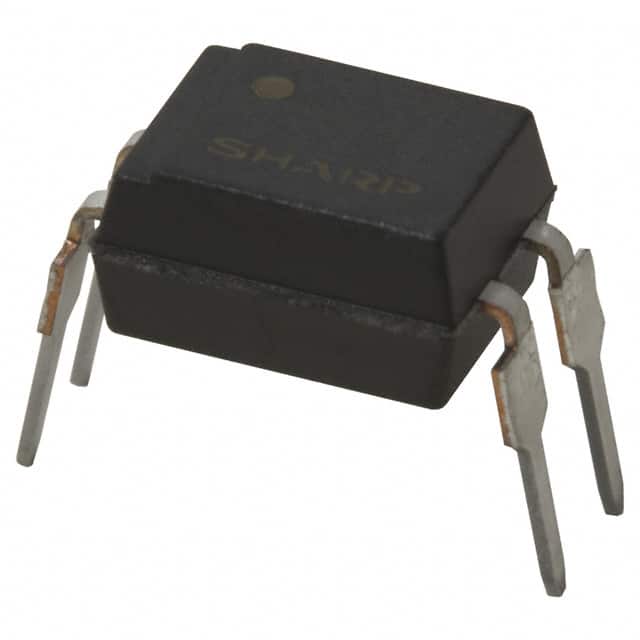

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | PC853XNNSZ0F |
| Manufacturer: | Socle Technology Corporation |
| Part of Description: | ISOLATOR |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3672 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PC853X |
| Package | Tape & Reel (TR) |
| Part Status | Discontinued at Digi-Key |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 1000% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 100µs, 20µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 350V |
| Current - Output / Channel | 150mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1.2V |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
Stock Status: 3672
Minimum: 1
Call for price or submit a RFQ
