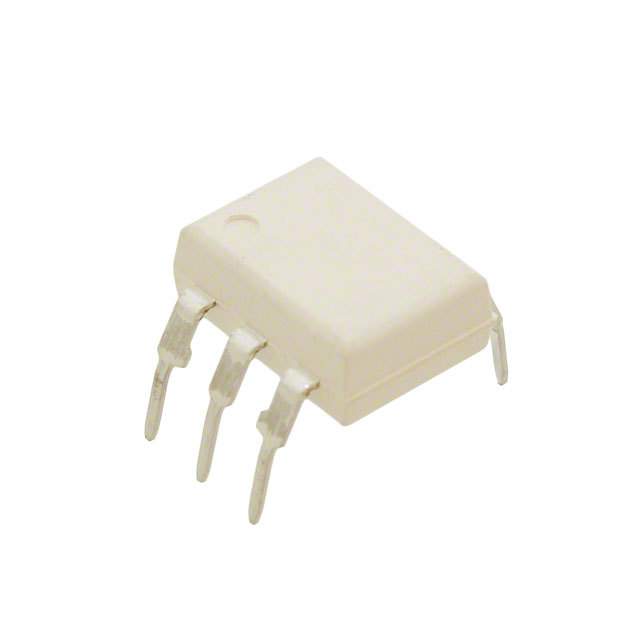

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SL5504300W |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | OPTOISO 5.3KV TRANS W/BASE 6DIP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4461 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 25% @ 10mA |
| Current Transfer Ratio (Max) | 400% @ 10mA |
| Turn On / Turn Off Time (Typ) | 50µs, 150µs (Max) |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 100mA |
| Voltage - Forward (Vf) (Typ) | 1.23V |
| Current - DC Forward (If) (Max) | 100 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package | 6-DIP |
Stock Status: 4461
Minimum: 1
Call for price or submit a RFQ
