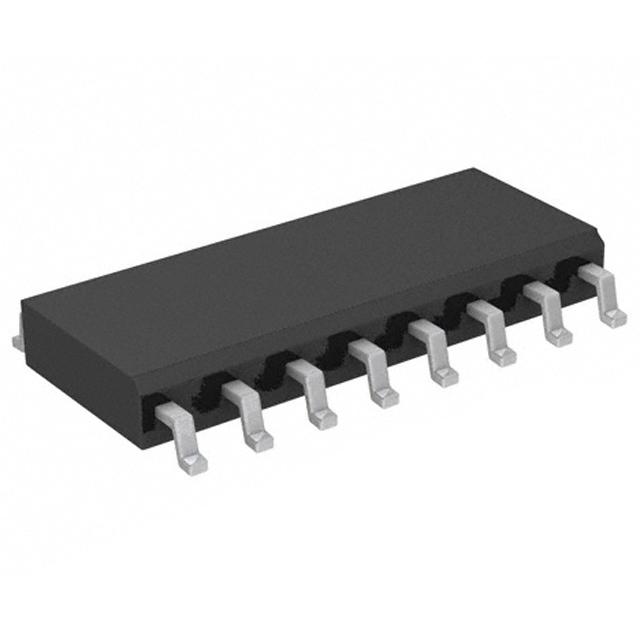

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ACSL-6310-06TE |
| Manufacturer: | Broadcom |
| Part of Description: | OPTOISO 2.5KV 3CH OPEN COLL 16SO |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1567 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Active |
| Number of Channels | 3 |
| Inputs - Side 1/Side 2 | 2/1 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 30ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.52V |
| Current - DC Forward (If) (Max) | 15mA |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
Stock Status: 1567
Minimum: 1
Price: $3.27074
