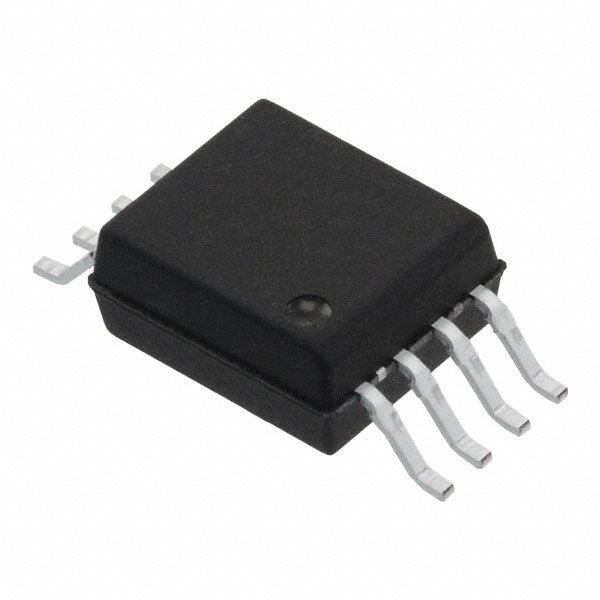

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | ACPL-K71T-060E |
| Manufacturer: | Broadcom |
| Part of Description: | OPTOISO 5KV PUSH PULL 8SO |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2316 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | - |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 35ns, 35ns |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.268", 6.81mm Width) |
| Supplier Device Package | 8-SO Stretched |
Stock Status: 2316
Minimum: 1
Price: $2.19929
