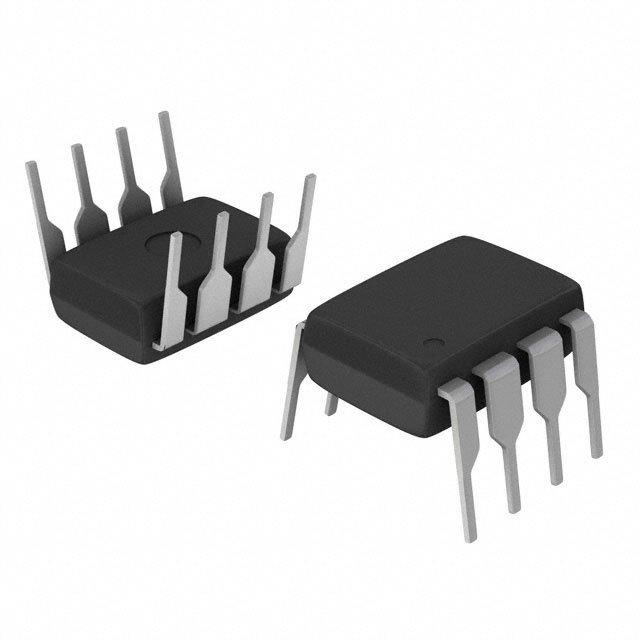

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | HCPL-2300 |
| Manufacturer: | Broadcom |
| Part of Description: | OPTOISO 3.75KV OPEN COLL 8DIP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1227 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 100V/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 25 mA |
| Data Rate | 5MBd |
| Propagation Delay tpLH / tpHL (Max) | 160ns, 200ns |
| Rise / Fall Time (Typ) | 40ns, 20ns |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Current - DC Forward (If) (Max) | 5mA (Typ) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Stock Status: 1227
Minimum: 1
Price: $4.22940
