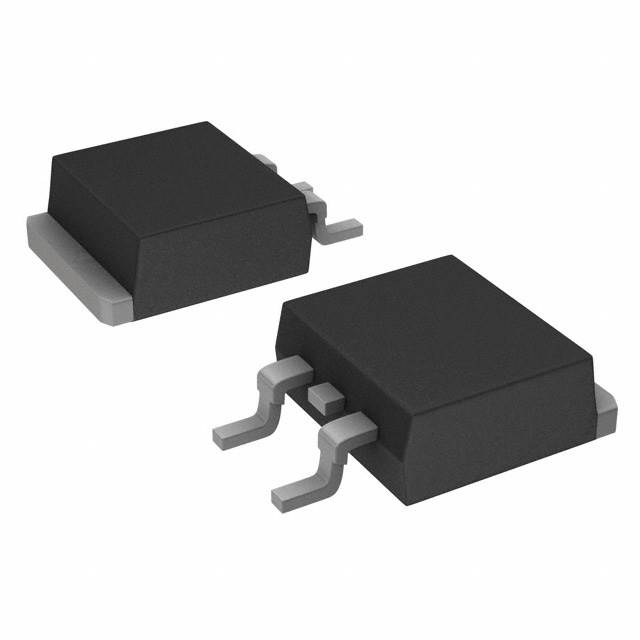

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IKB20N65EH5ATMA1 |
| Manufacturer: | IR (Infineon Technologies) |
| Part of Description: | INDUSTRY 14 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3025 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TrenchStop™ 5 |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 38 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 20A |
| Power - Max | 125 W |
| Switching Energy | 560µJ (on), 130µJ (off) |
| Input Type | Standard |
| Gate Charge | 48 nC |
| Td (on/off) @ 25°C | 19ns/160ns |
| Test Condition | 400V, 20A, 32Ohm, 15V |
| Reverse Recovery Time (trr) | 80 ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK (TO-263AB) |
Stock Status: 3025
Minimum: 1
Price: $1.67930
