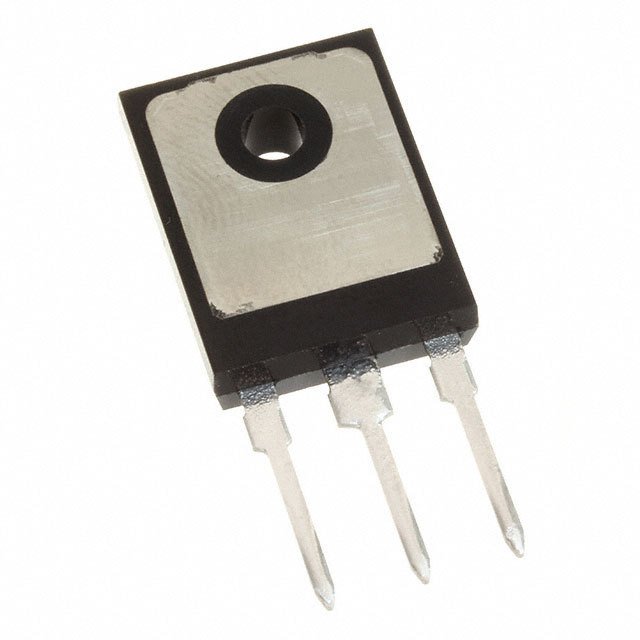

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IGW75N65H5XKSA1 |
| Manufacturer: | IR (Infineon Technologies) |
| Part of Description: | IGBT TRENCH 650V 120A TO247-3 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1034 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TrenchStop™ |
| Package | Tube |
| Part Status | Active |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 300 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| Power - Max | 395 W |
| Switching Energy | 2.25mJ (on), 950µJ (off) |
| Input Type | Standard |
| Gate Charge | 160 nC |
| Td (on/off) @ 25°C | 28ns/174ns |
| Test Condition | 400V, 75A, 8Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3 |
Stock Status: 1034
Minimum: 1
Price: $5.06000
