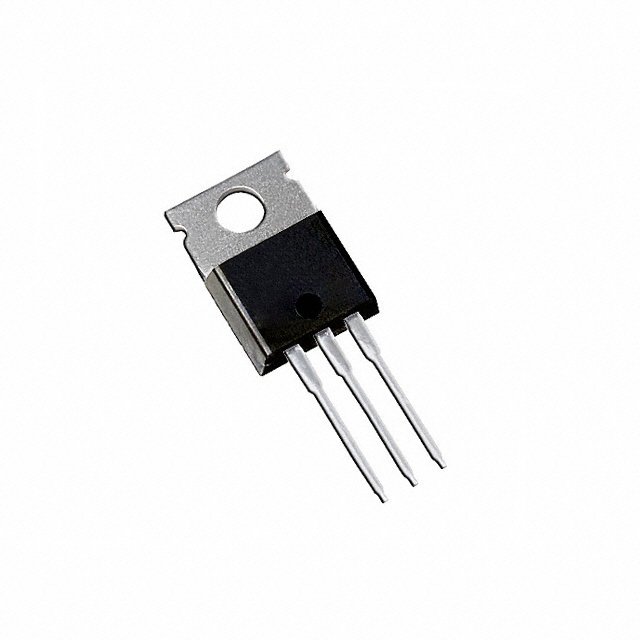

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IRG4BC10UPBF |
| Manufacturer: | IR (Infineon Technologies) |
| Part of Description: | IGBT 600V 8.5A 38W TO220AB |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3334 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 8.5 A |
| Current - Collector Pulsed (Icm) | 34 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 5A |
| Power - Max | 38 W |
| Switching Energy | 140µJ (on), 120µJ (off) |
| Input Type | Standard |
| Gate Charge | 15 nC |
| Td (on/off) @ 25°C | 40ns/87ns |
| Test Condition | 480V, 5A, 100Ohm, 15V |
| Reverse Recovery Time (trr) | 28 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
Stock Status: 3334
Minimum: 1
Call for price or submit a RFQ
