Sanyo Semiconductor/ON Semiconductor / TIG056BF

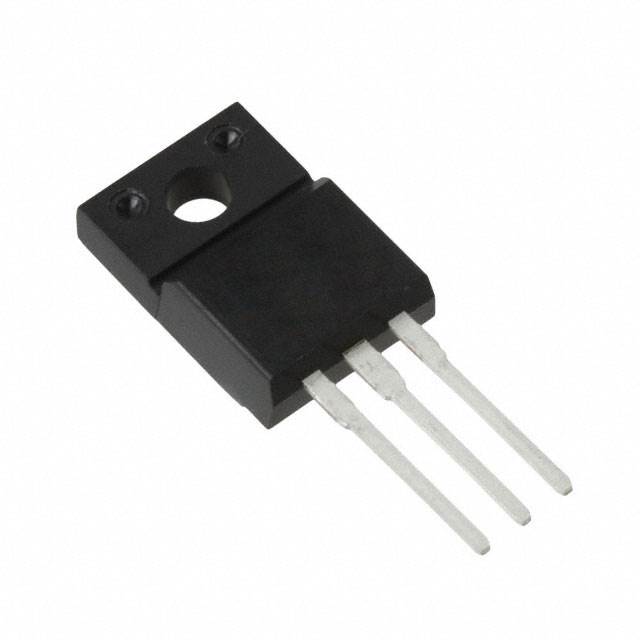

Image is for reference, please contact us to get the real picture

Manufacturer Part Number:	TIG056BF
Manufacturer:	Sanyo Semiconductor/ON Semiconductor
Part of Description:	IGBT 400V 30W TO220
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Stock Condition:	2313 In Stock
Ship From:	Hong Kong
Shipment Way:	DHL/Fedex/TNT/UPS/EMS

REMARK: Buy the TIG056BF Sanyo Semiconductor/ON Semiconductor on xunyun-ic.com, we are Sanyo Semiconductor/ON Semiconductor Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the TIG056BF within 24 hours,please contact our sales team or send email to zimin@xinyunic.com Hope we can cooperate in the future.

Type	Description
Series	-
Package	Bulk
Part Status	Obsolete
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	430 V
Current - Collector (Ic) (Max)	-
Current - Collector Pulsed (Icm)	240 A
Vce(on) (Max) @ Vge, Ic	5V @ 15V, 240A
Power - Max	30 W
Switching Energy	-
Input Type	Standard
Gate Charge	-
Td (on/off) @ 25°C	46ns/140ns
Test Condition	320V, 240A, 10Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220FI(LS)

All the Eelctronics Components will be packing in very safely by ESD antistatic protection.

package

BUYING OPTIONS

Stock Status: 2313

Minimum: 1

Call for price or sumbit a RFQ
