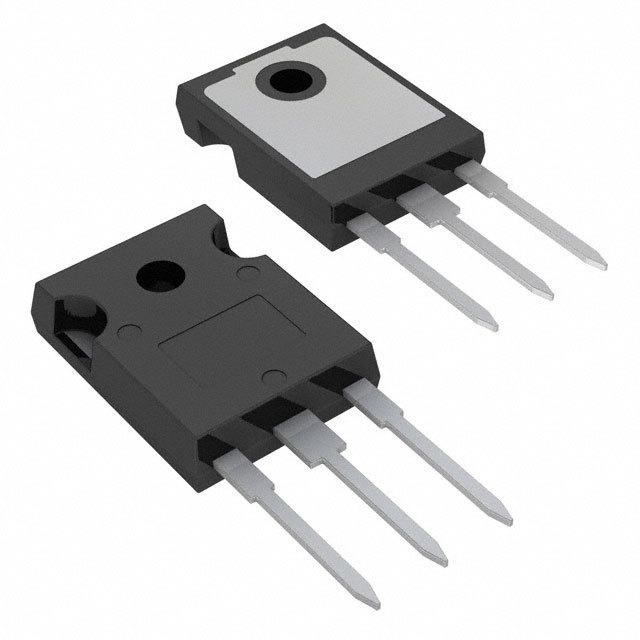

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IRG4PC30UDPBF |
| Manufacturer: | Rochester Electronics |
| Part of Description: | ULTRAFAST COPACK IGBT W/ULTRAFAS |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2272 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 23 A |
| Current - Collector Pulsed (Icm) | 92 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 12A |
| Power - Max | 100 W |
| Switching Energy | 380µJ (on), 160µJ (off) |
| Input Type | Standard |
| Gate Charge | 50 nC |
| Td (on/off) @ 25°C | 40ns/91ns |
| Test Condition | 480V, 12A, 23Ohm, 15V |
| Reverse Recovery Time (trr) | 42 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
Stock Status: 2272
Minimum: 1
Price: $2.25000
