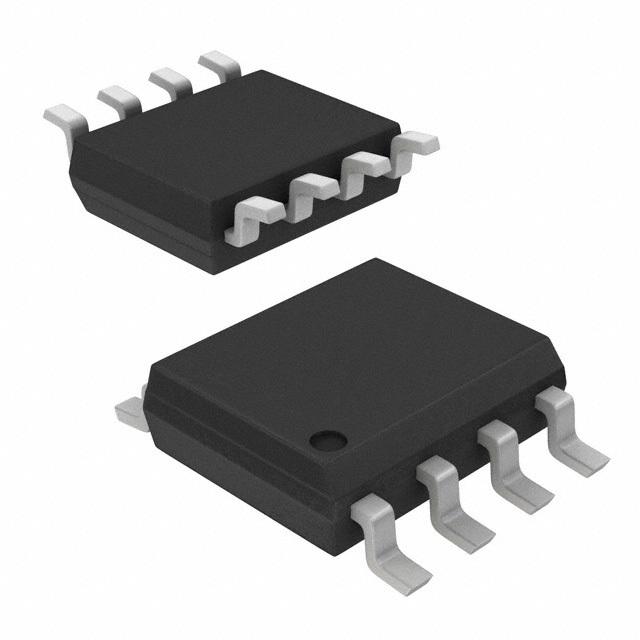

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IRF7326D2PBF |
| Manufacturer: | IR (Infineon Technologies) |
| Part of Description: | MOSFET P-CH 30V 3.6A 8SO |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2967 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | FETKY™ |
| Package | Tube |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 1.8A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 440 pF @ 25 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Stock Status: 2967
Minimum: 1
Call for price or submit a RFQ
