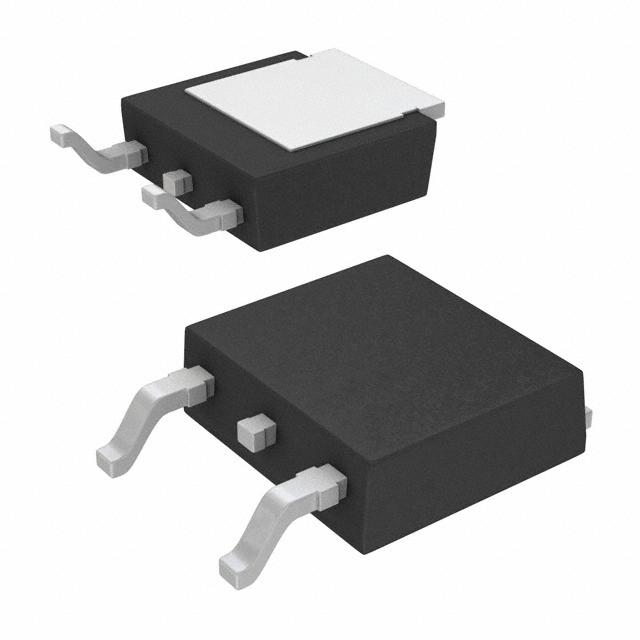

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IPD034N06N3GATMA1 |
| Manufacturer: | IR (Infineon Technologies) |
| Part of Description: | MOSFET N-CH 60V 100A TO252-3 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2851 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | OptiMOS™ |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 93µA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11000 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 167W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO252-3 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Stock Status: 2851
Minimum: 1
Price: $1.78000
