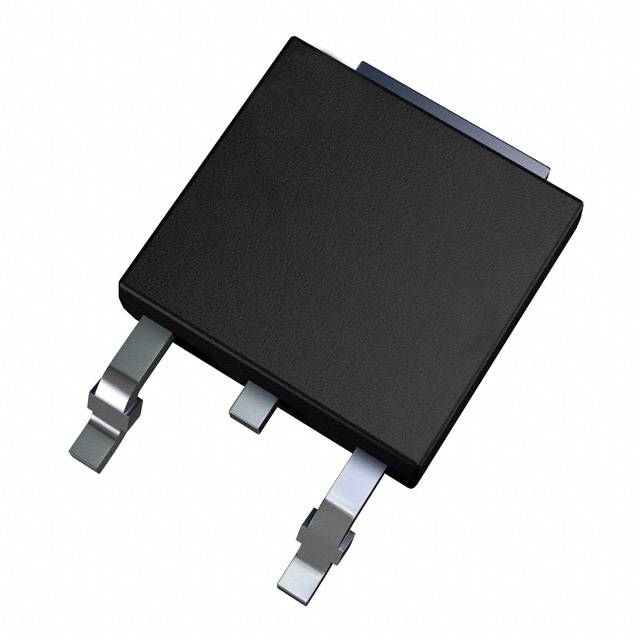

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | FDD6672A |
| Manufacturer: | Rochester Electronics |
| Part of Description: | MOSFET N-CH 30V 65A TO252 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 5084 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PowerTrench® |
| Package | Bulk |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 5.07 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W (Ta), 70W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Stock Status: 5084
Minimum: 1
Price: $0.99000
