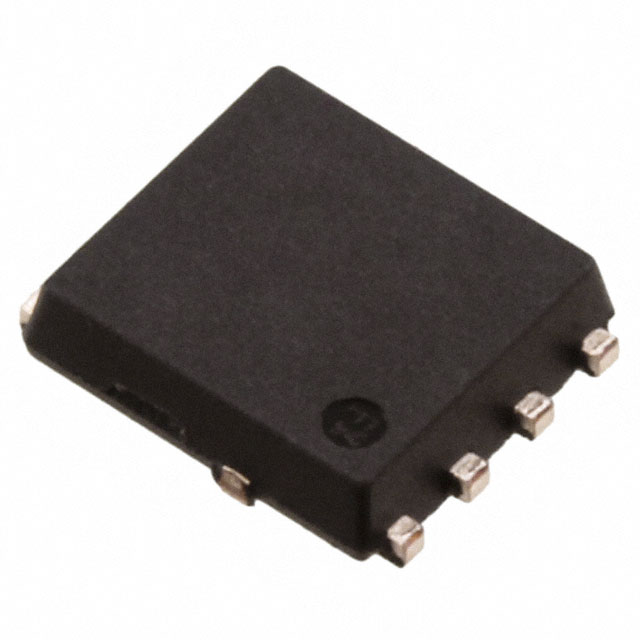

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NP23N06YDG-E1-AY |
| Manufacturer: | Renesas Electronics America |
| Part of Description: | MOSFET N-CH 60V 23A 8HSON |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2259 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 11.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta), 60W (Tc) |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HSON |
| Package / Case | 8-SMD, Flat Lead Exposed Pad |
Stock Status: 2259
Minimum: 1
Call for price or submit a RFQ
