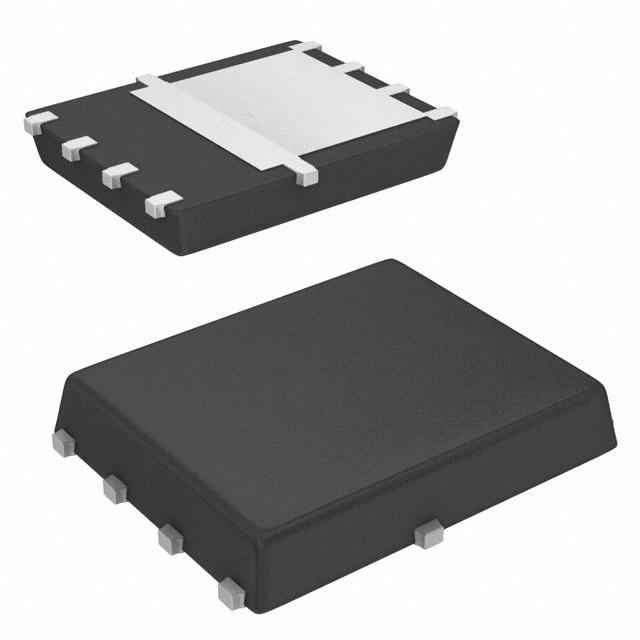

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SIR104ADP-T1-RE3 |
| Manufacturer: | Vishay / Siliconix |
| Part of Description: | MOSFET N-CH 100V 18.8A/81A PPAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2362 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TrenchFET® Gen IV |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 18.8A (Ta), 81A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7.5V, 10V |
| Rds On (Max) @ Id, Vgs | 6.1mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 70 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3250 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 5.4W (Ta), 100W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
Stock Status: 2362
Minimum: 1
Price: $2.16000
