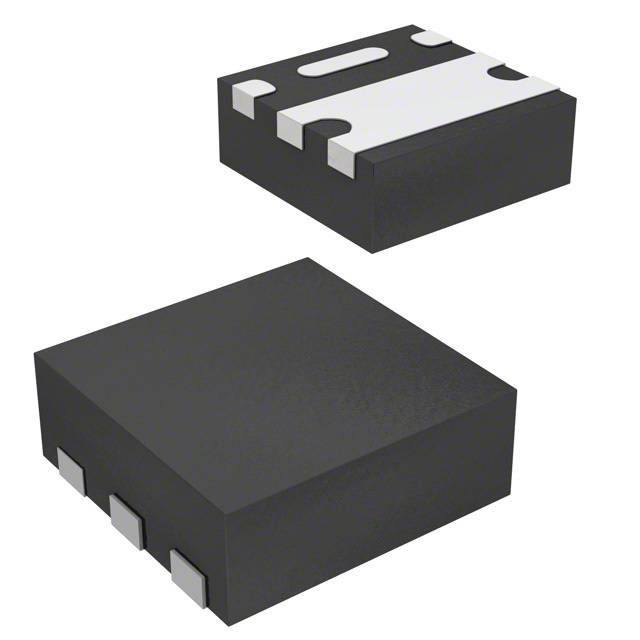

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SIA459EDJ-T1-GE3 |
| Manufacturer: | Vishay / Siliconix |
| Part of Description: | MOSFET P-CH 20V 9A PPAK SC70-6 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 9655 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TrenchFET® |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 885 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.9W (Ta), 15.6W (Tc) |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-70-6 Single |
| Package / Case | PowerPAK® SC-70-6 |
Stock Status: 9655
Minimum: 1
Price: $0.52000
