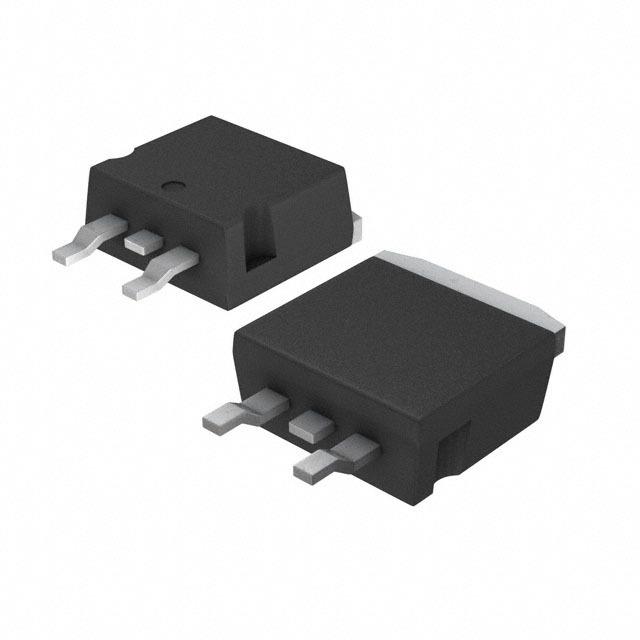

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | STB23NM60N |
| Manufacturer: | STMicroelectronics |
| Part of Description: | MOSFET N-CH 600V 19A D2PAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 4424 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | MDmesh™ II |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 9.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 60 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 2050 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 150W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Stock Status: 4424
Minimum: 1
Call for price or submit a RFQ
