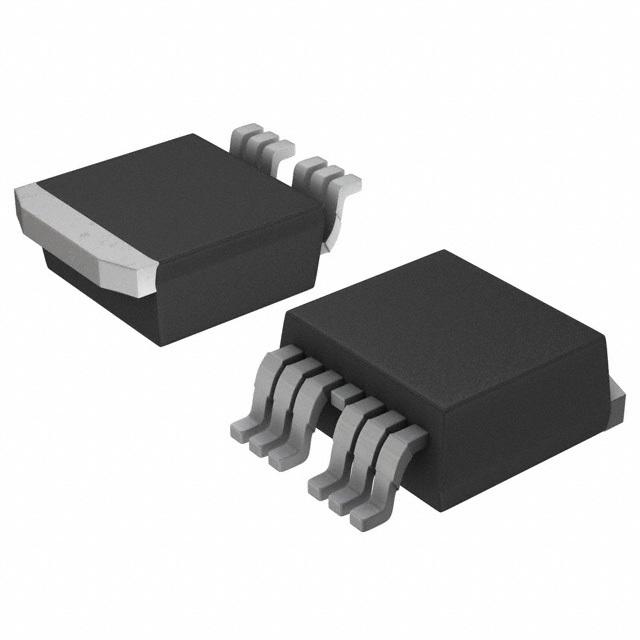

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | FDB0190N807L |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | MOSFET N-CH 80V 270A TO263-7 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 925 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PowerTrench® |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 270A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Rds On (Max) @ Id, Vgs | 1.7mOhm @ 34A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 249 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 19110 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 250W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
Stock Status: 925
Minimum: 1
Price: $5.65000
