STMicroelectronics / STS2DPFS20V

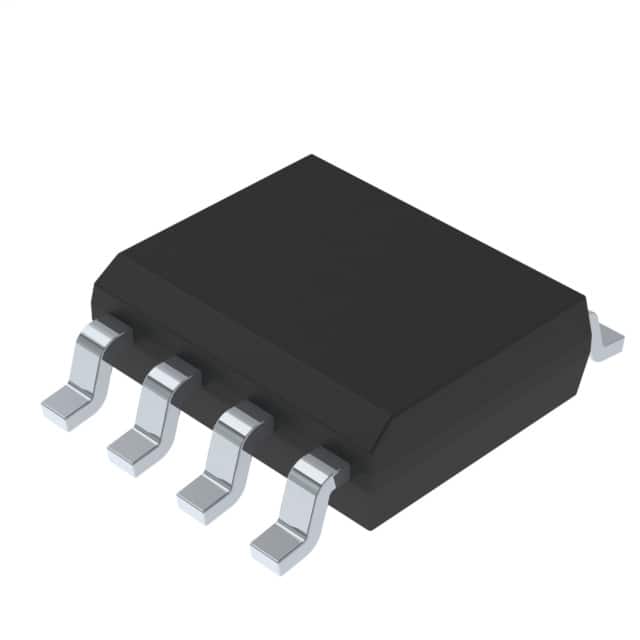

Image is for reference, please contact us to get the real picture

REMARK: Buy the STS2DPFS20V STMicroelectronics on xunyun-ic.com, we are STMicroelectronics Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the STS2DPFS20V within 24 hours,please contact our sales team or send email to zimin@xinyunic.com Hope we can cooperate in the future.

Type	Description
Series	STripFET™ II
Package	Tape & Reel (TR)Cut Tape (CT)
Part Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Max) @ Id, Vgs	200mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	600mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.7 nC @ 4.5 V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	315 pF @ 15 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	2W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Package / Case	8-SOIC (0.154", 3.90mm Width)

All the Eelctronics Components will be packing in very safely by ESD antistatic protection.

package

BUYING OPTIONS

Stock Status: 1927

Minimum: 1

Call for price or sumbit a RFQ
