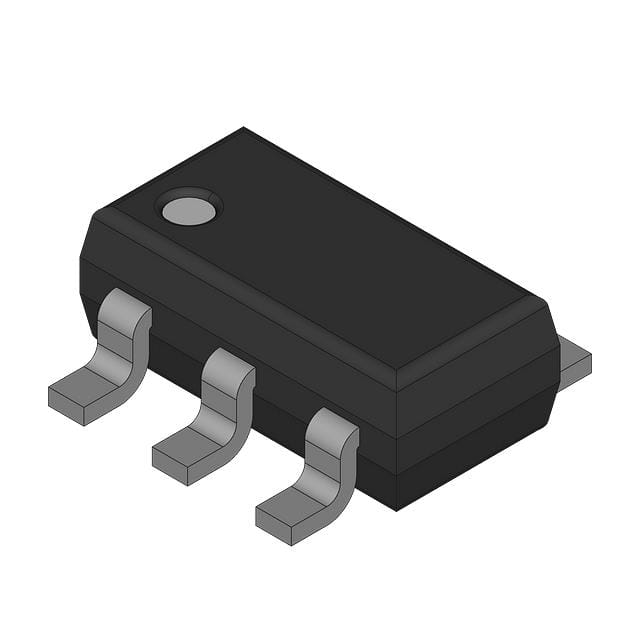

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | PMN48XP,125 |
| Manufacturer: | Rochester Electronics |
| Part of Description: | MOSFET P-CH 20V 4.1A 6TSOP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 100035 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 2.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1.25V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 530mW (Ta), 6.25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SC-74, SOT-457 |
Stock Status: 100035
Minimum: 1
Price: $0.05000
