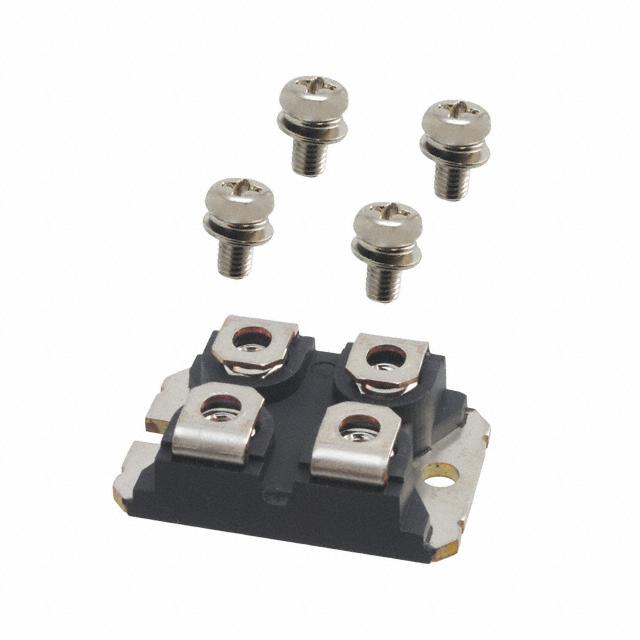

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IXTN40P50P |
| Manufacturer: | Wickmann / Littelfuse |
| Part of Description: | MOSFET P-CH 500V 40A SOT227B |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 201 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | PolarP™ |
| Package | Tube |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 205 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 890W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
Stock Status: 201
Minimum: 1
Price: $29.25000
