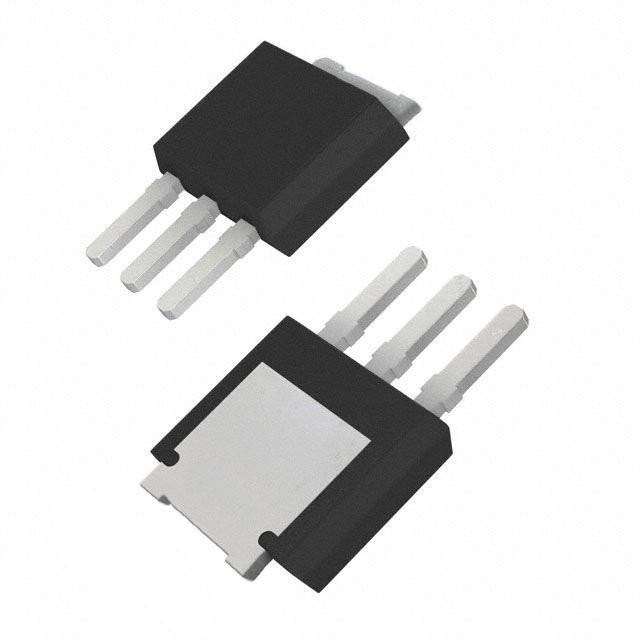

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NTD4806N-35G |
| Manufacturer: | Rochester Electronics |
| Part of Description: | MOSFET N-CH 30V 11.3A/79A IPAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 20039 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11.3A (Ta), 79A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 11.5V |
| Rds On (Max) @ Id, Vgs | 6mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2.142 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.4W (Ta), 68W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak |
Stock Status: 20039
Minimum: 1
Price: $0.25000
