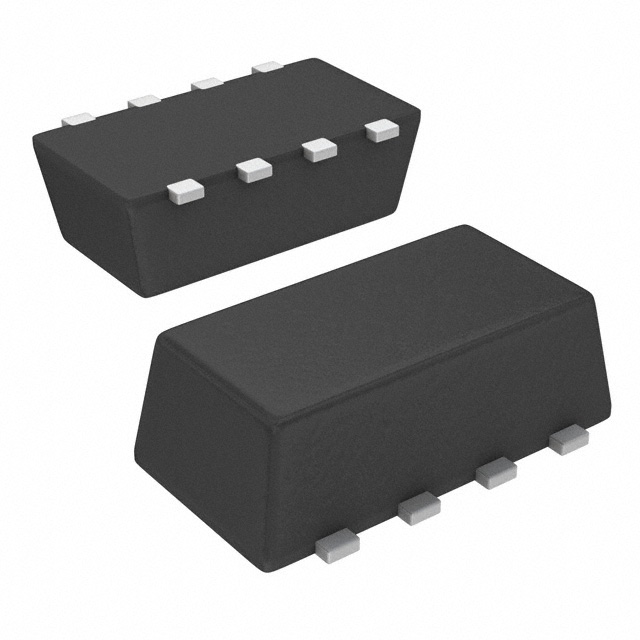

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SI5475BDC-T1-E3 |
| Manufacturer: | Vishay / Siliconix |
| Part of Description: | MOSFET P-CH 12V 6A 1206-8 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2184 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | TrenchFET® |
| Package | Tape & Reel (TR) |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 28mOhm @ 5.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 8 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 6.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1206-8 ChipFET™ |
| Package / Case | 8-SMD, Flat Lead |
Stock Status: 2184
Minimum: 1
Call for price or submit a RFQ
