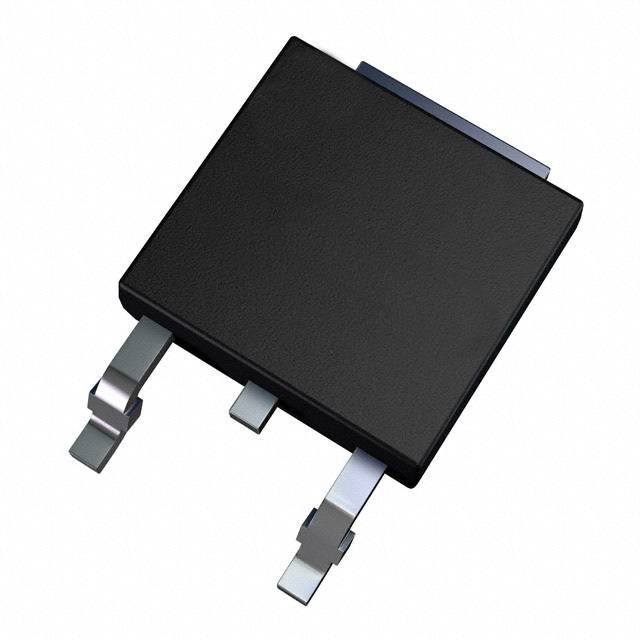

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | NTD23N03RT4G |
| Manufacturer: | Rochester Electronics |
| Part of Description: | MOSFET N-CH 25V 3.8A/17.1A DPAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 50049 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 3.8A (Ta), 17.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 5V |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.76 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 225 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.14W (Ta), 22.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Stock Status: 50049
Minimum: 1
Price: $0.10000
