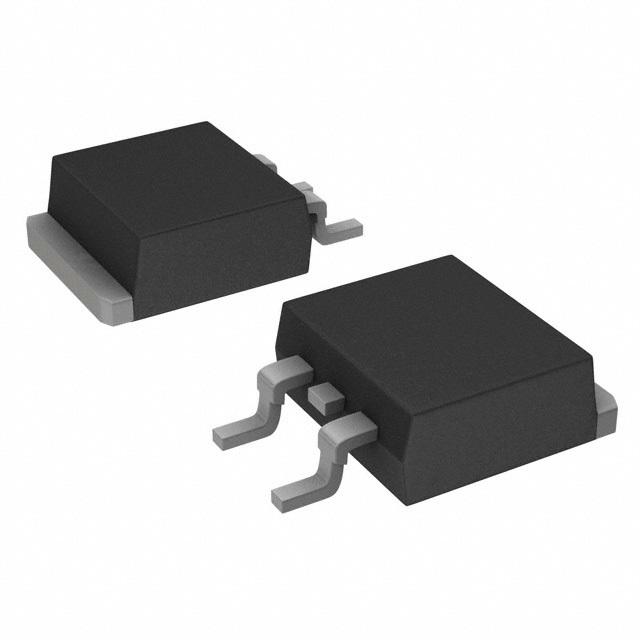

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | FQB16N15TM |
| Manufacturer: | Rochester Electronics |
| Part of Description: | MOSFET N-CH 150V 16.4A D2PAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 7510 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | QFET® |
| Package | Bulk |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 16.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 8.2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 910 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.75W (Ta), 108W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D²PAK (TO-263AB) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Stock Status: 7510
Minimum: 1
Price: $0.67000
