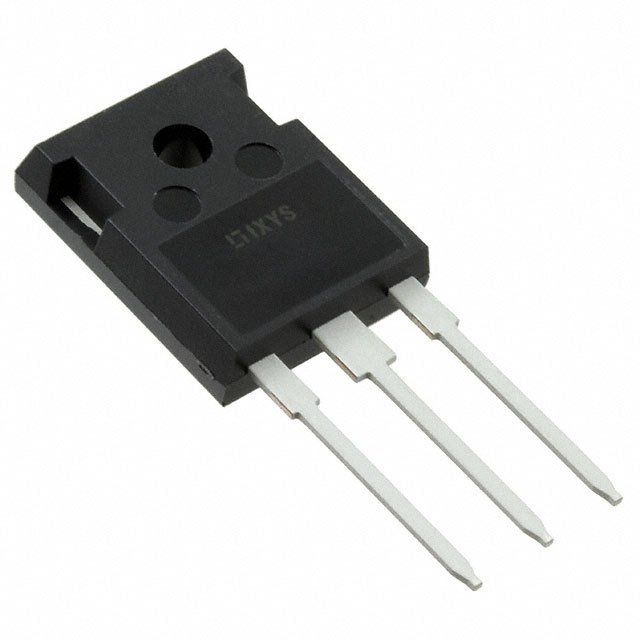

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IXFH14N100Q2 |
| Manufacturer: | Wickmann / Littelfuse |
| Part of Description: | MOSFET N-CH 1000V 14A TO247AD |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3347 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | HiPerFET™ |
| Package | Tube |
| Part Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 950mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 83 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 500W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) |
| Package / Case | TO-247-3 |
Stock Status: 3347
Minimum: 1
Call for price or submit a RFQ
