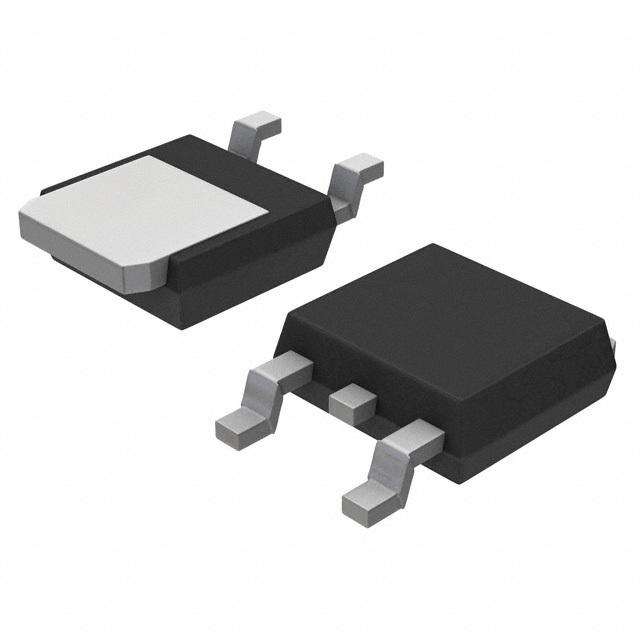

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SFT1341-TL-E |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | MOSFET P-CH 40V 10A DPAK/TP-FA |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 914 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 112mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 4.5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta), 15W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK/TP-FA |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Stock Status: 914
Minimum: 1
Call for price or submit a RFQ
