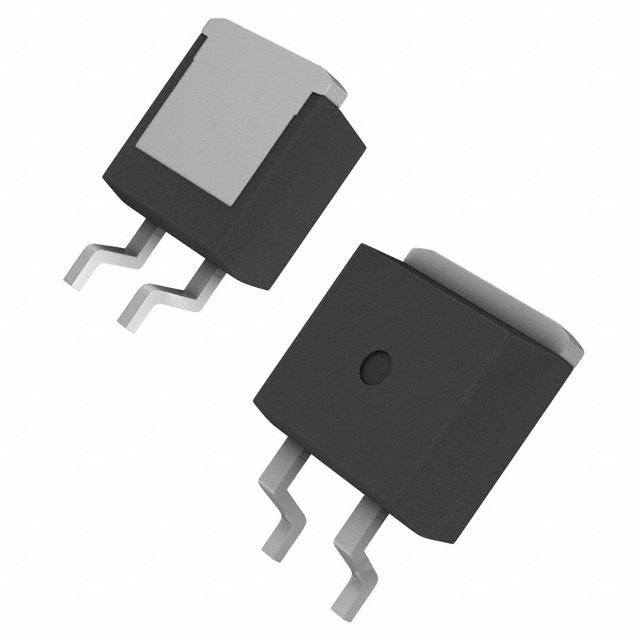

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IXFA130N10T2 |
| Manufacturer: | Wickmann / Littelfuse |
| Part of Description: | MOSFET N-CH 100V 130A TO263 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1395 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | GigaMOS™, HiPerFET™, TrenchT2™ |
| Package | Tube |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 130A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 9.1mOhm @ 65A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 130 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6600 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 360W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263 (IXFA) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Stock Status: 1395
Minimum: 1
Price: $3.67540
