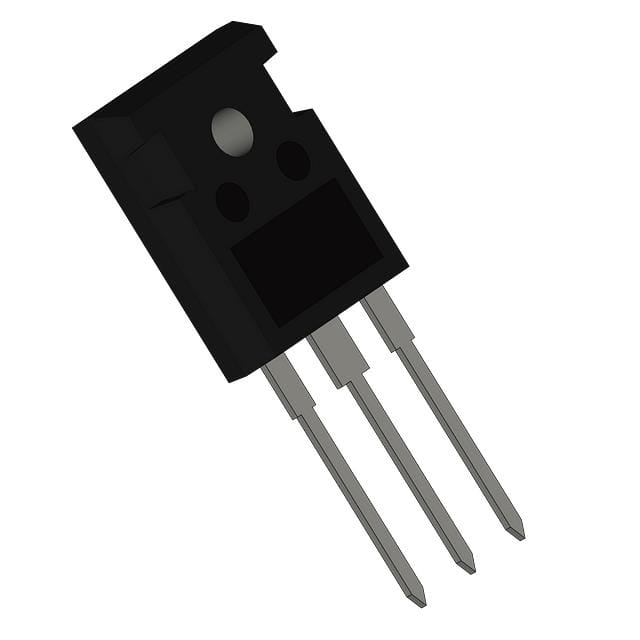

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IPW50R199CPFKSA1 |
| Manufacturer: | Rochester Electronics |
| Part of Description: | MOSFET N-CH 550V 17A TO247-3 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3063 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | CoolMOS™ |
| Package | Tube |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 550 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 199mOhm @ 9.9A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 660µA |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1.8 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 139W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO247-3 |
| Package / Case | TO-247-3 |
Stock Status: 3063
Minimum: 1
Price: $1.65000
