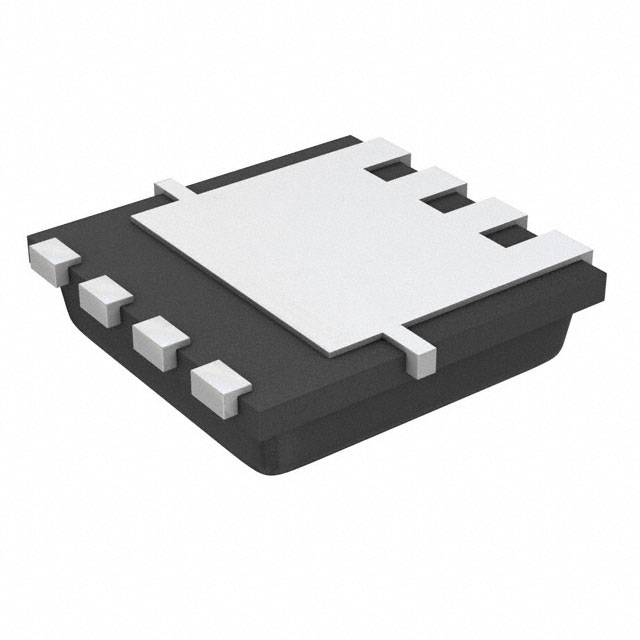

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | DMP3013SFV-13 |
| Manufacturer: | Zetex Semiconductors (Diodes Inc.) |
| Part of Description: | MOSFET P-CH 30V 12A PWRDI3333 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 23501 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 11.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33.7 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1674 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 940mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerDI3333-8 (Type UX) |
| Package / Case | 8-PowerVDFN |
Stock Status: 23501
Minimum: 1
Price: $0.21313
