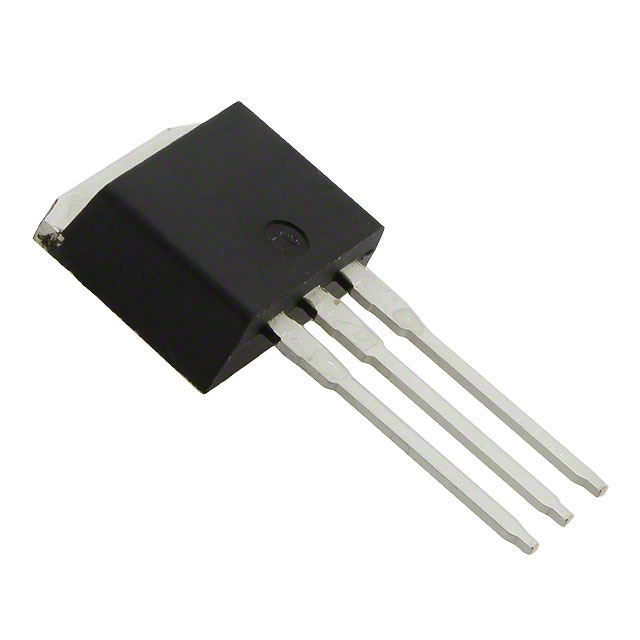

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | IRL530L |
| Manufacturer: | Vishay / Siliconix |
| Part of Description: | MOSFET N-CH 100V 15A TO262-3 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1870 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tube |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 5V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 9A, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 930 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-262-3 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
Stock Status: 1870
Minimum: 1
Call for price or submit a RFQ
