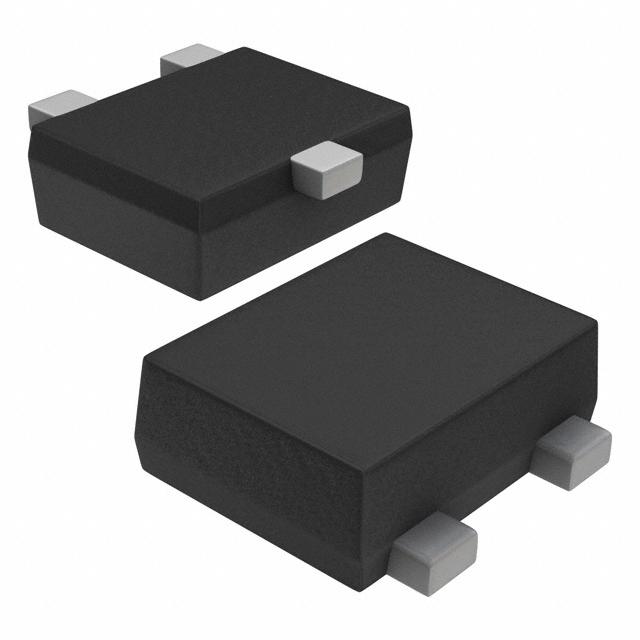

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | MCH3209-TL-E |
| Manufacturer: | Sanyo Semiconductor/ON Semiconductor |
| Part of Description: | TRANS NPN 30V 3A MCPH3 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 9139 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Part Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 155mV @ 75mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Power - Max | 800 mW |
| Frequency - Transition | 450MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | 3-MCPH |
Stock Status: 9139
Minimum: 1
Price: $0.55000
