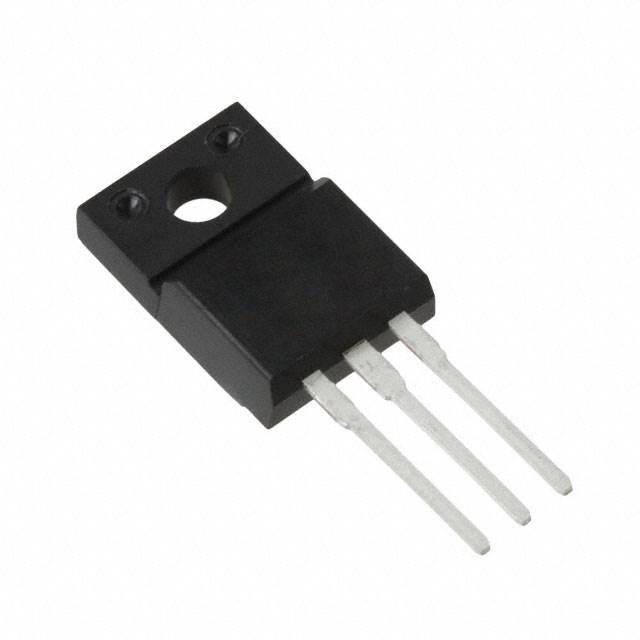

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 2SC59540Q |
| Manufacturer: | Panasonic |
| Part of Description: | TRANS NPN 60V 3A TO-220D |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 2947 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 20mA, 1A |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 500 @ 500mA, 4V |
| Power - Max | 2 W |
| Frequency - Transition | 200MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220D-A1 |
Stock Status: 2947
Minimum: 1
Call for price or submit a RFQ
