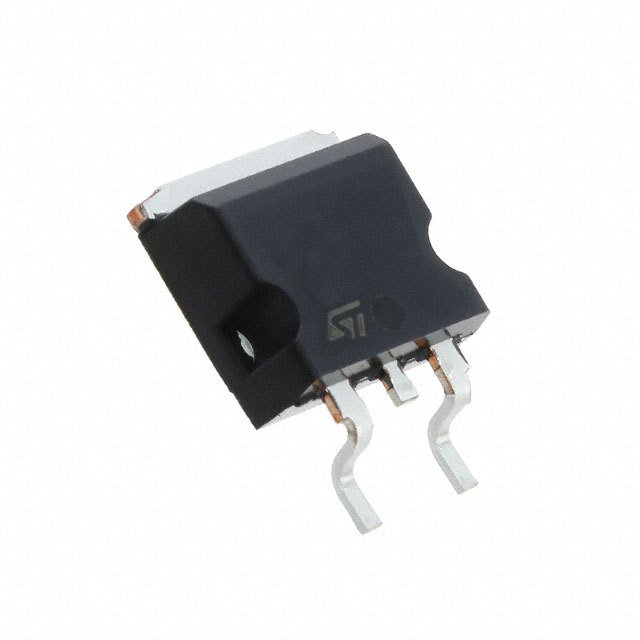

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 2STBN15D100T4 |
| Manufacturer: | STMicroelectronics |
| Part of Description: | TRANS NPN DARL 100V 12A D2PAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 1582 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Obsolete |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 12 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 1.3V @ 4mA, 4A |
| Current - Collector Cutoff (Max) | 100µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 3A, 3V |
| Power - Max | 70 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK |
Stock Status: 1582
Minimum: 1
Call for price or submit a RFQ
