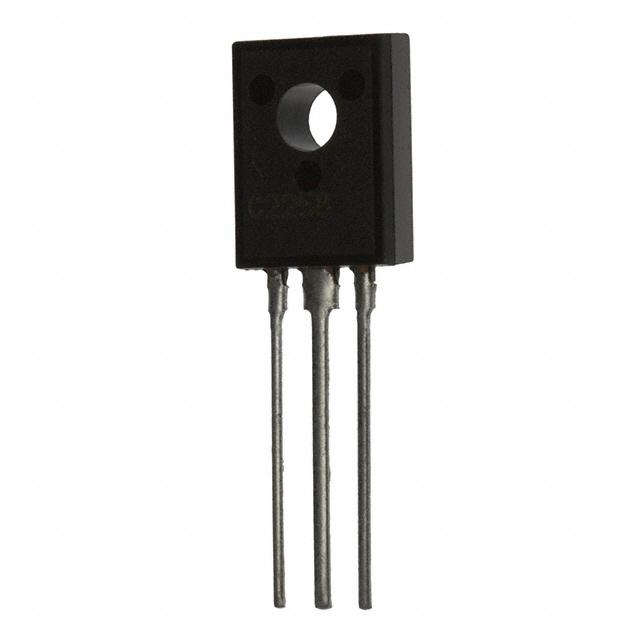

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | 2SD2018 |
| Manufacturer: | Panasonic |
| Part of Description: | TRANS NPN DARL 60V 1A TO-126 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 3340 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
| Type | Description |
|---|---|
| Series | - |
| Package | Bulk |
| Part Status | Obsolete |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 1.8V @ 1mA, 1A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 6500 @ 1A, 10V |
| Power - Max | 5 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126B-A1 |
Stock Status: 3340
Minimum: 1
Call for price or submit a RFQ
